Overview
EM-UNIQUE pattern painted steel utilizes the most advanced manufacturing to create unique patterns and virtual textures. At the same times, we also have Em-Strip Film that will protect the steel surface from scratches during processing, transportation, and product installation. Empower Steel’s innovation machinery can use various raw materials to coat multiple prints on the steel surface with quality. EM-UNIQUE meets industry standard requirements of TIS. 2753-2559 and other international standards.
Product Idea
EM-Strip Film, Ultra-quality clear film Designed to be used with Empower Steel products to prevent scratches While transporting and installing So that the product’s skin is still as beautiful as new
Substrate, Material Grade
: Galvalume Steel (AZ150) Galvanized Steel, Stainless Steel and Aluminium G550, G300
Surface Treatment
: Chemical Conversion Coating
Base Coat + Ink Coat + Clear Coat
: Paint system PVDF or Advance Durability Polyester 10 µm, Corrosion Inhibitive Primer 5 µm
: PVDF (Ink) or Advance Durability
Polyester (Ink) 3 µm
: High Durability Polyester 10 µm
: PVDF (Ink) or Advance Durability
Polyester (Ink) 3 µm
: High Durability Polyester 10 µm
Backing Coat
: Paint system Modified Polyester 5 µm,
Corrosion Inhibitive Primer 5 µm
Corrosion Inhibitive Primer 5 µm
Strippable Film
: Em-Strip Film
Base Metal Thickness (BMT)
: 0.30, 0.40 mm. (Up to 1.20 mm.)
Width
: 914-1219 mm. (ฺUp to 1270 mm.)
Testing Method
| Properties | Test Mehod | Purpose | Standard | |
| Dry film Thickness | Dry film Thickness Measurement | Paint Thickness | TIS 2753 ASTM D5796 AS/NZS 1580.108.1 | |
| Paint Film Hardness | Pencil Hardness | Hardness properties of paint layer | TIS 2753 ASTM D3363 JIS G3322 | |
| Paint Adhesion | Cross Cut | Adhesion between paint layer | TIS 2753 JIS G3322 | |
| T-Bend | Colour adhesion and flexibility | TIS 2753 ASTM D4145 AS/NZS 2728 (App.F) JIS G3322 | ||
| Dupont Impact | Colour adhesion and flexibility | TIS 2753 JIS G3322 | ||
| Reverse Impact | Colour adhesion and flexibility | AS/NZS 2728 | ||
| Gloss | 60º Gloss Meter | Colour gloss | ASTM D523 AS/NZS 1580.602.2 | |
| Corrosion Resistance | Salt Spray Test (SST) | Corrosion resistant properties | TIS 2753 ASTM B117 |
More Testing Method
| Properties | Test Mehod | Purpose | Standard | |
| Weathering Resistance | ||||
| Chalking | QUV | Weather resistant properties | ASTM D4214 method D AS/NZS 1580.481.1.11 | |
| Colour Fading | QUV | Weather resistant properties | ASTM G154 ASTM D2244 | |
| Humidity Resistance | QCT (Cleveland) | Relative humidity resistance properties | ASTM D4585 / D4585M AS/NZS 1580.481.1.9 | |
| Solvent Resistance | Mechanical Rubbing (MEK) | Dryness of paint | ASTM D5402 or D7835/ D7835M | |
| Colour Shading | Light Source (Colour-Visual) | Colour difference | AS/NZS 1580.601.1 | |
| Colour Sectrophotometer (∆E) | Colour deviation | ASTM D2244 |
Product Warranty
- Non-peeling due to corrosion
- Flawlessness or flakes of colour
- The colour does not fade or flake severely
Substrate, Material Grade
: Galvalume Steel (AZ150) Galvanized Steel, Stainless Steel and Aluminium G550, G300
Surface Treatment
: Chemical Conversion Coating
Base Coat + Ink Coat + Clear Coat
: Paint system PVDF or Advance Durability Polyester 10 µm, Corrosion Inhibitive Primer 5 µm
: PVDF (Ink) or Advance Durability
Polyester (Ink) 3 µm
: High Durability Polyester 10 µm
: PVDF (Ink) or Advance Durability
Polyester (Ink) 3 µm
: High Durability Polyester 10 µm
Backing Coat
: Paint system Modified Polyester 5 µm,
Corrosion Inhibitive Primer 5 µm
Corrosion Inhibitive Primer 5 µm
Strippable Film
: Em-Strip Film
Base Metal Thickness (BMT)
: 0.30, 0.40 mm. (Up to 1.20 mm.)
Width
: 914-1219 mm. (ฺUp to 1270 mm.)
Pattern Products

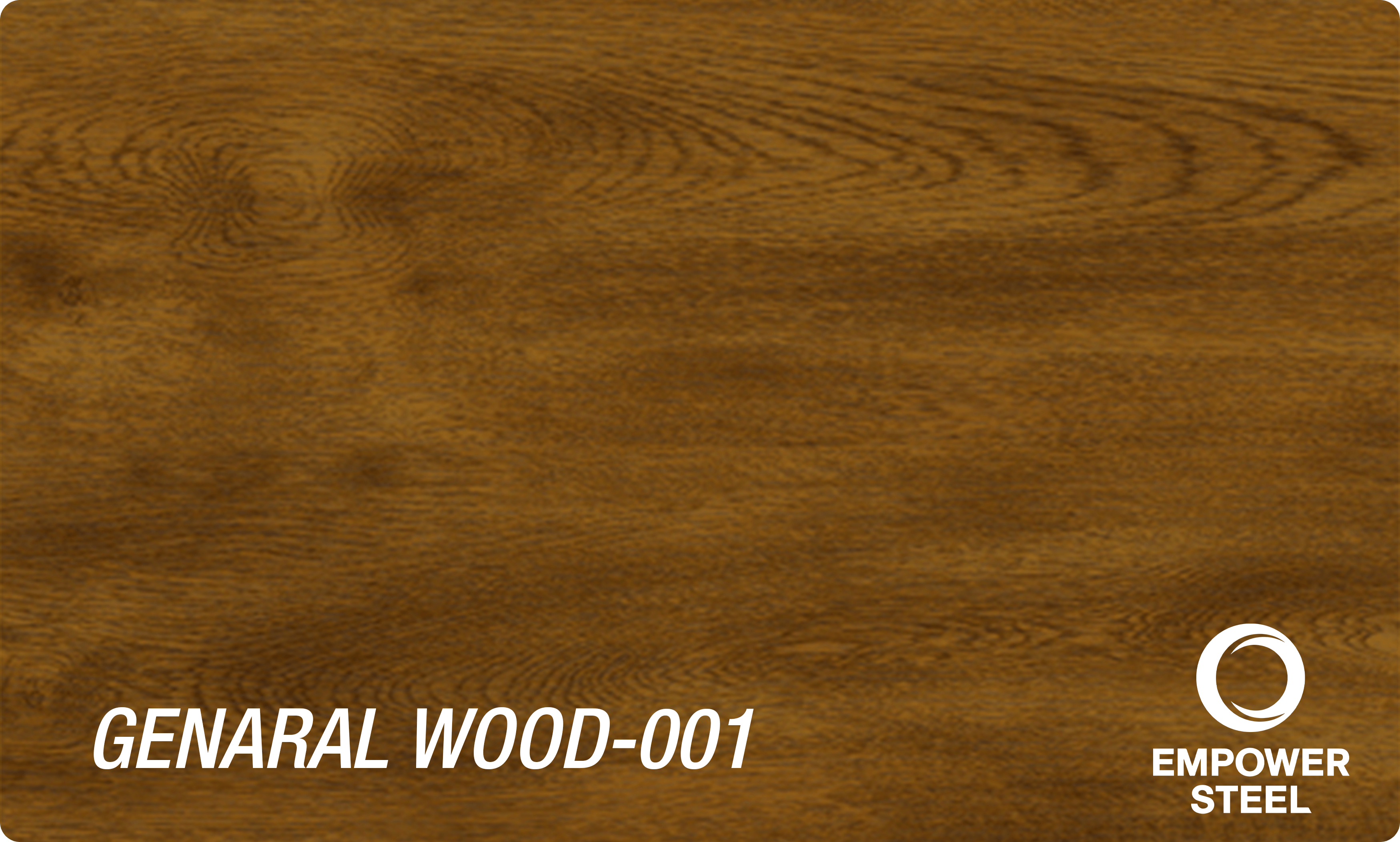

GENARAL WOOD-001
RGB
HEX
CMYK
RAL
GENARAL WOOD-002
RGB
HEX
CMYK
RAL

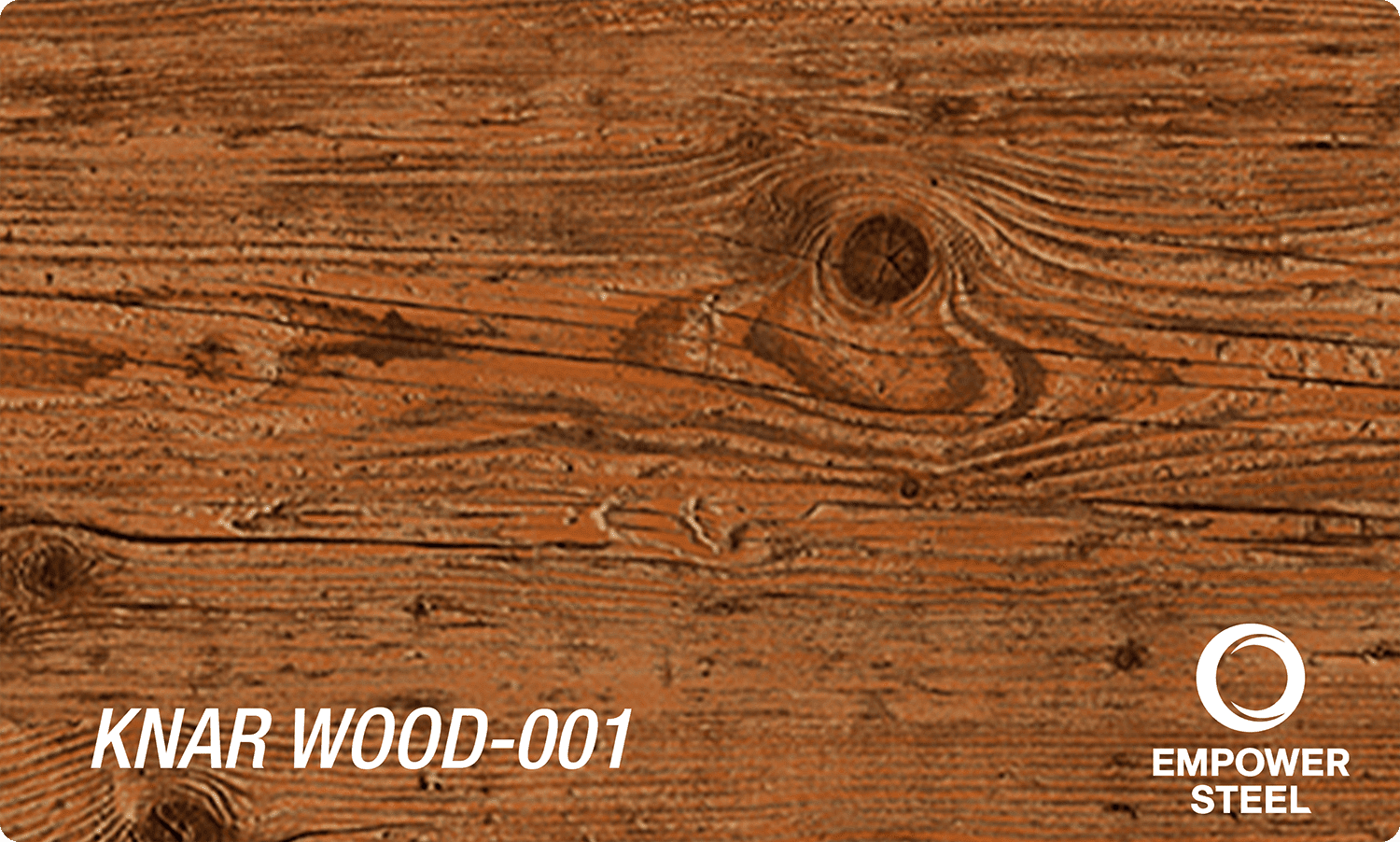

KNAR WOOD-001
RGB
HEX
CMYK
RAL

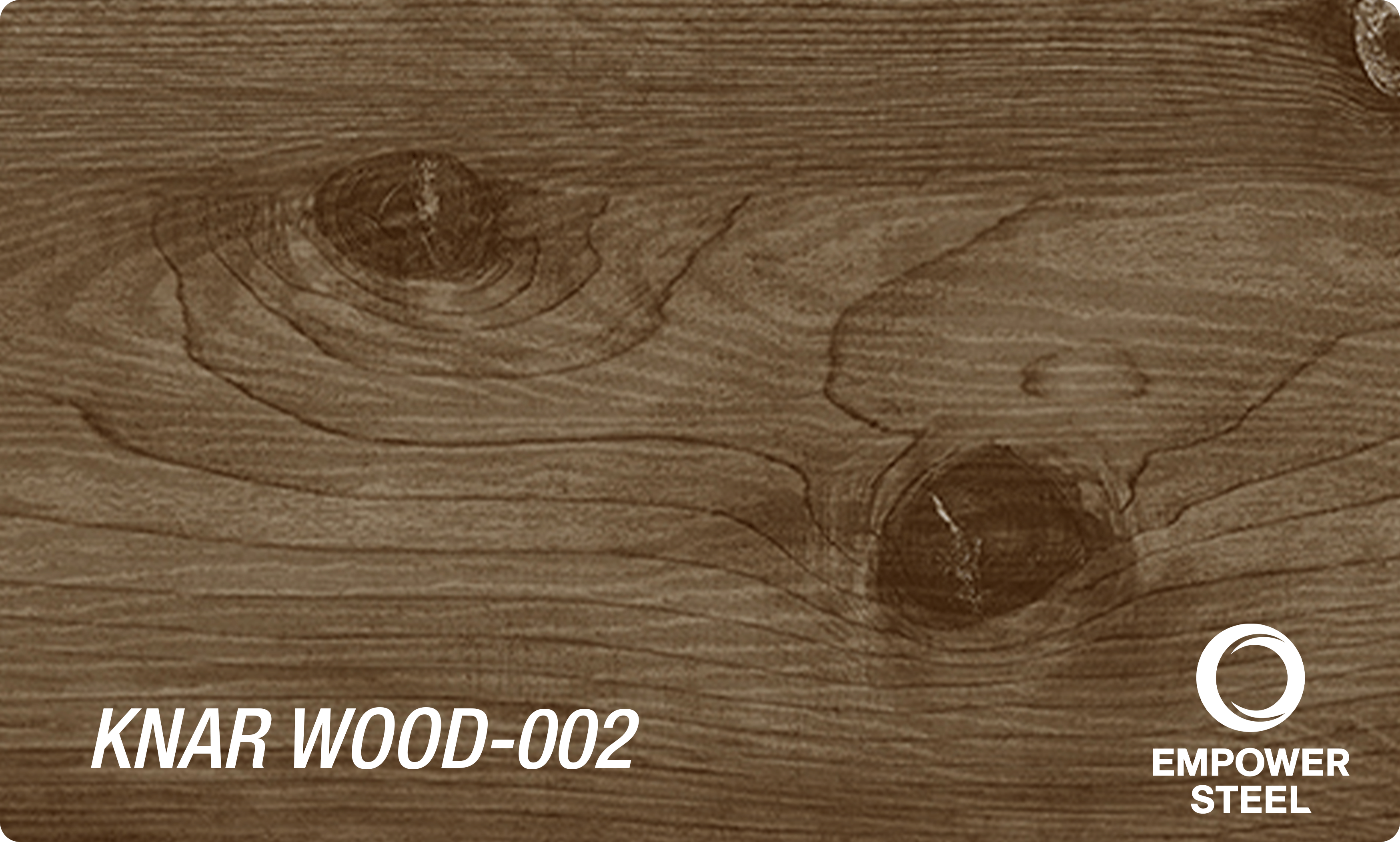

KNAR WOOD-002
RGB
HEX
CMYK
RAL

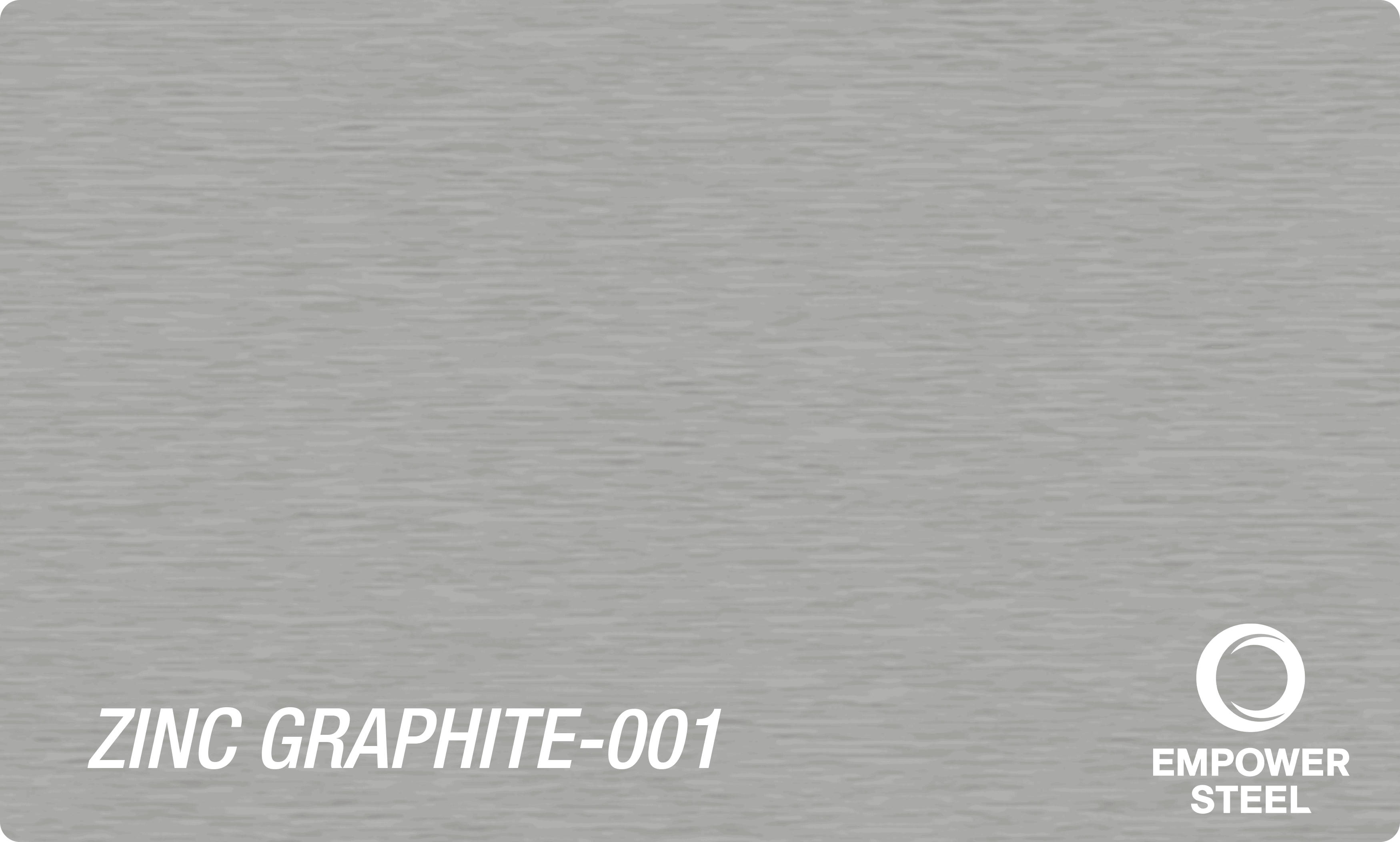

ZINC GRAPHITE-001
RGB
HEX
CMYK
RAL

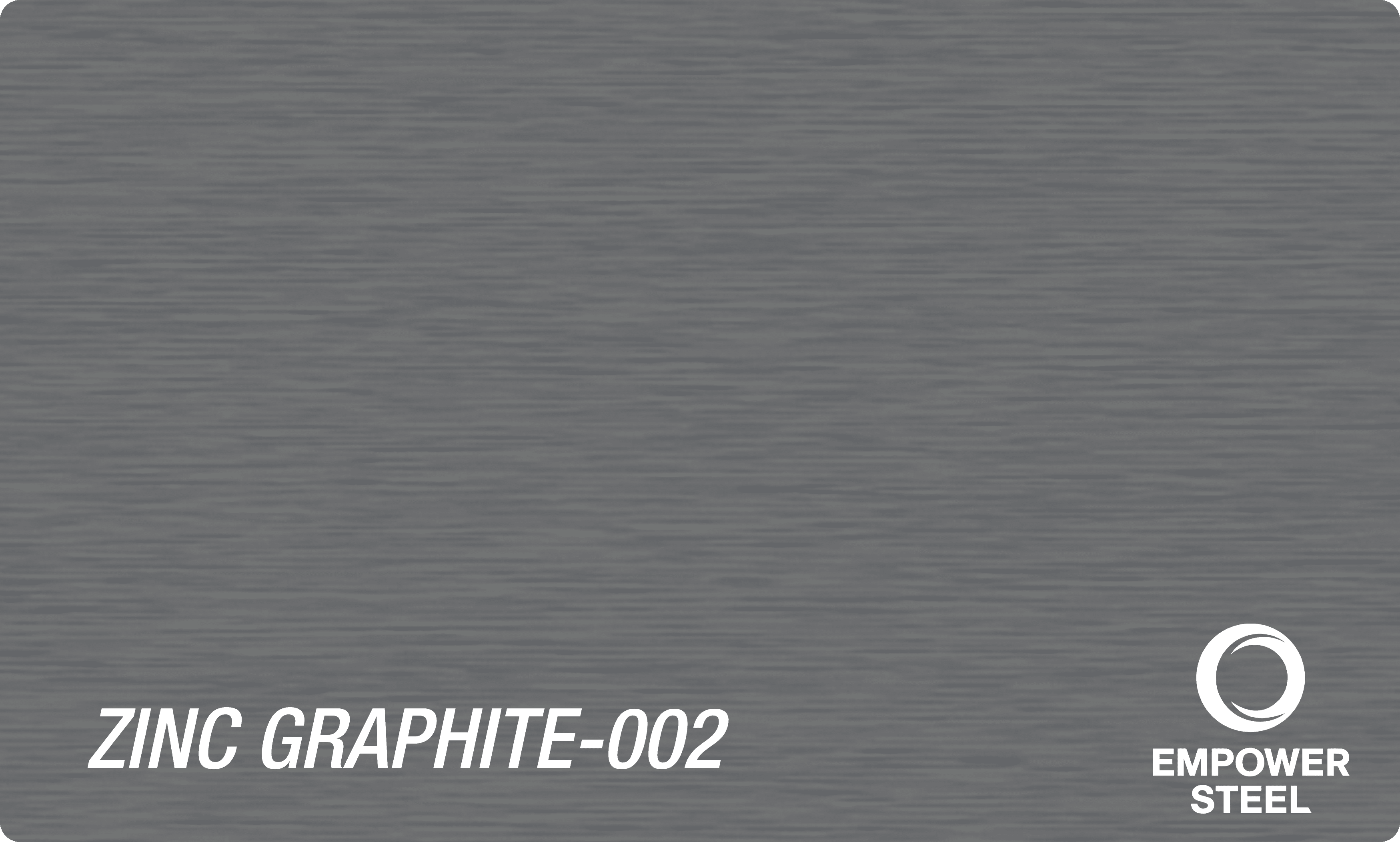

ZINC GRAPHITE-002
RGB
HEX
CMYK
RAL

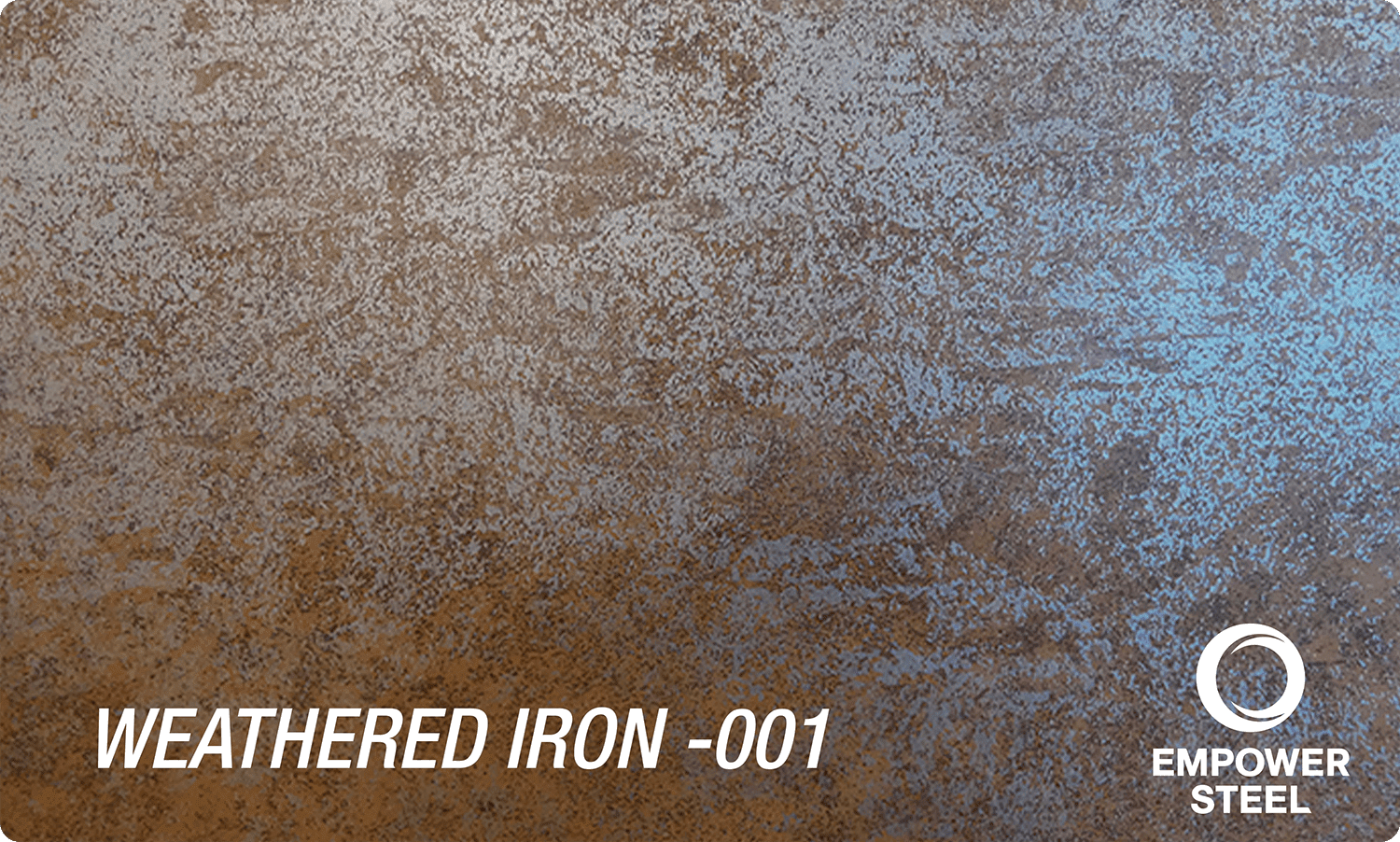

WEATHERED IRON -001
RGB
HEX
CMYK
RAL

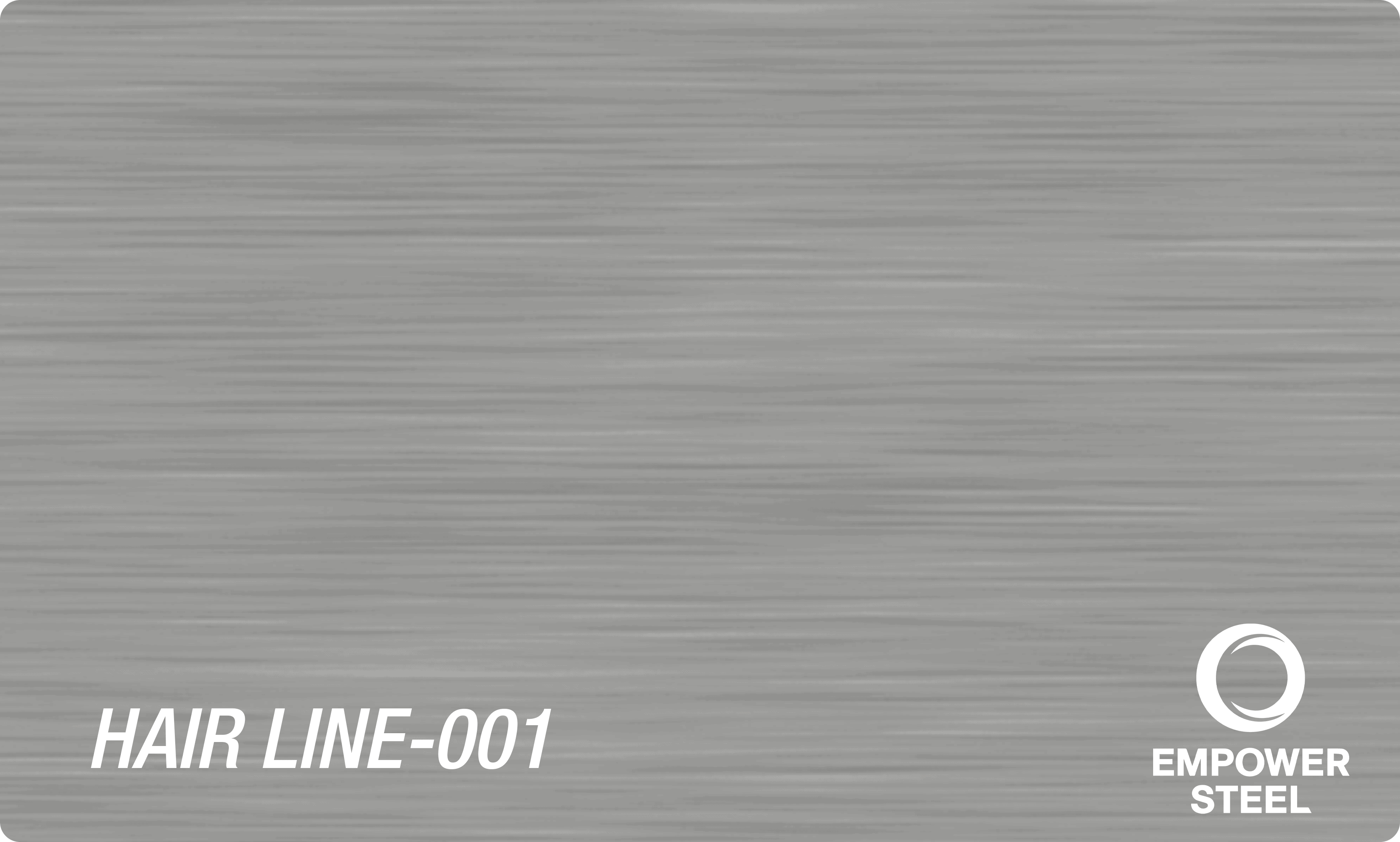

HAIR LINE-001
RGB
HEX
CMYK
RAL

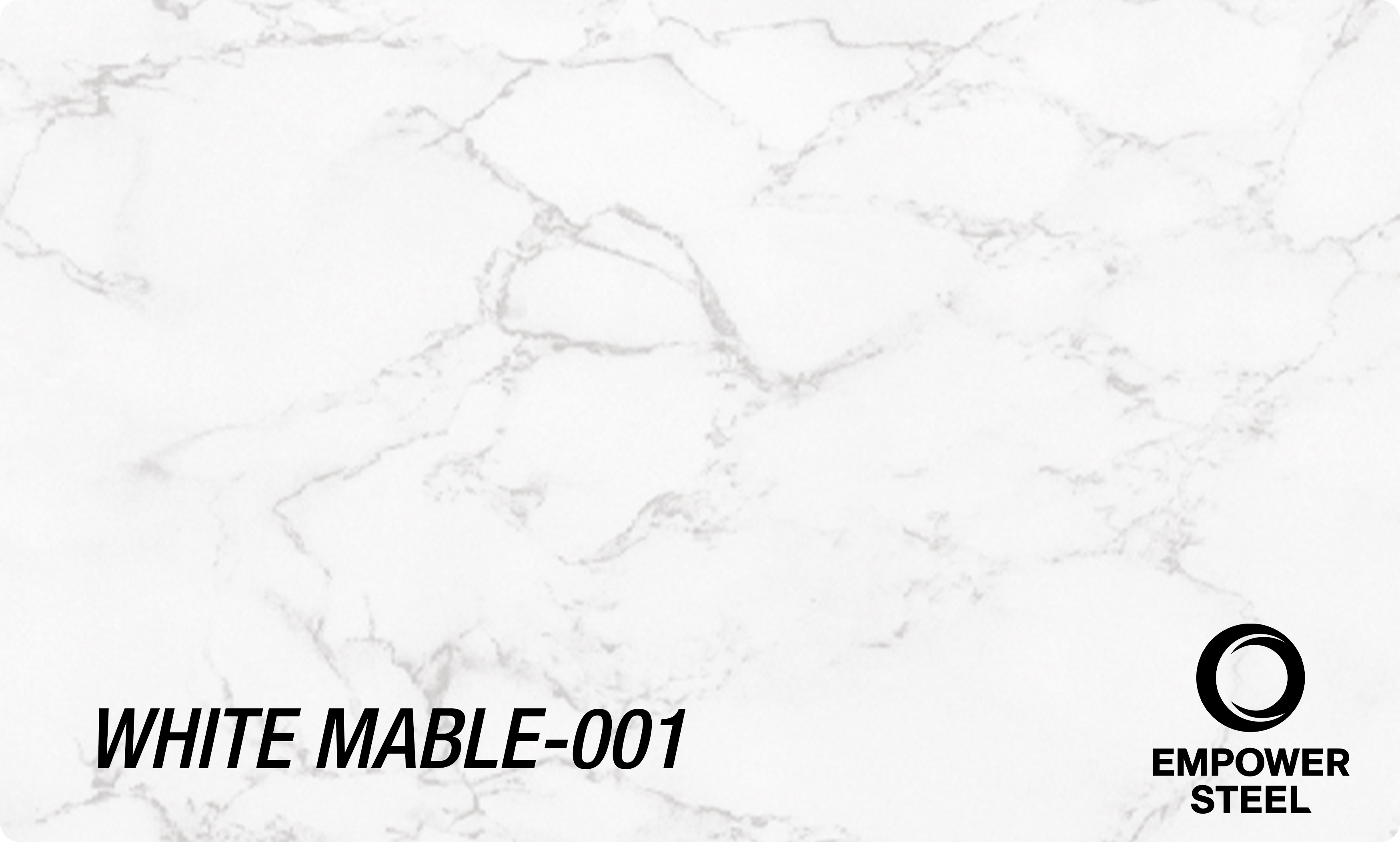

WHITE MABLE-001
RGB
HEX
CMYK
RAL

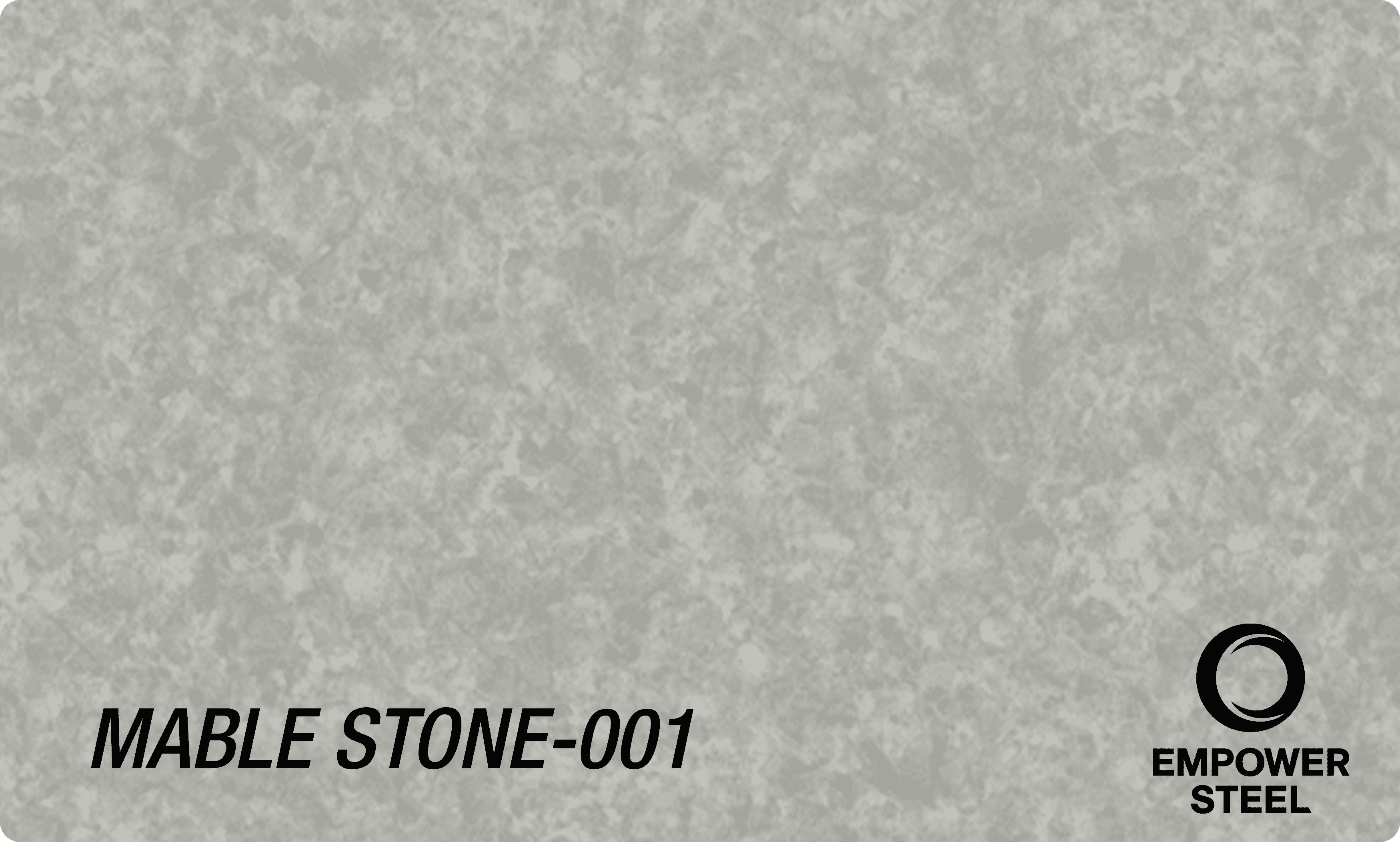

MABLE STONE-001
RGB
HEX
CMYK
RAL
